// System Architecture

The facility as a conscious entity.

Connect every edge sensor into a single perception engine. AleraVision fuses multi-modal data in real time, isolates verified events from ambient noise, and routes them to the operators who can act.

// How it works

From signal to action in three steps.

Every AleraVision deployment runs the same shape: capture what's happening, understand what it means, get it to the right person.

Modern security camera mounted on a ceiling watching an industrial facility.
Step 01 · Capture

Video Captured

Existing cameras and edge sensors observe the environment continuously — no rip-and-replace.

View more+

Seamless Sensor Integration

I effortlessly connect with your existing SOC system or with Airez's advanced video, audio, fiber, and environmental sensors, becoming the central hub for all your location data.

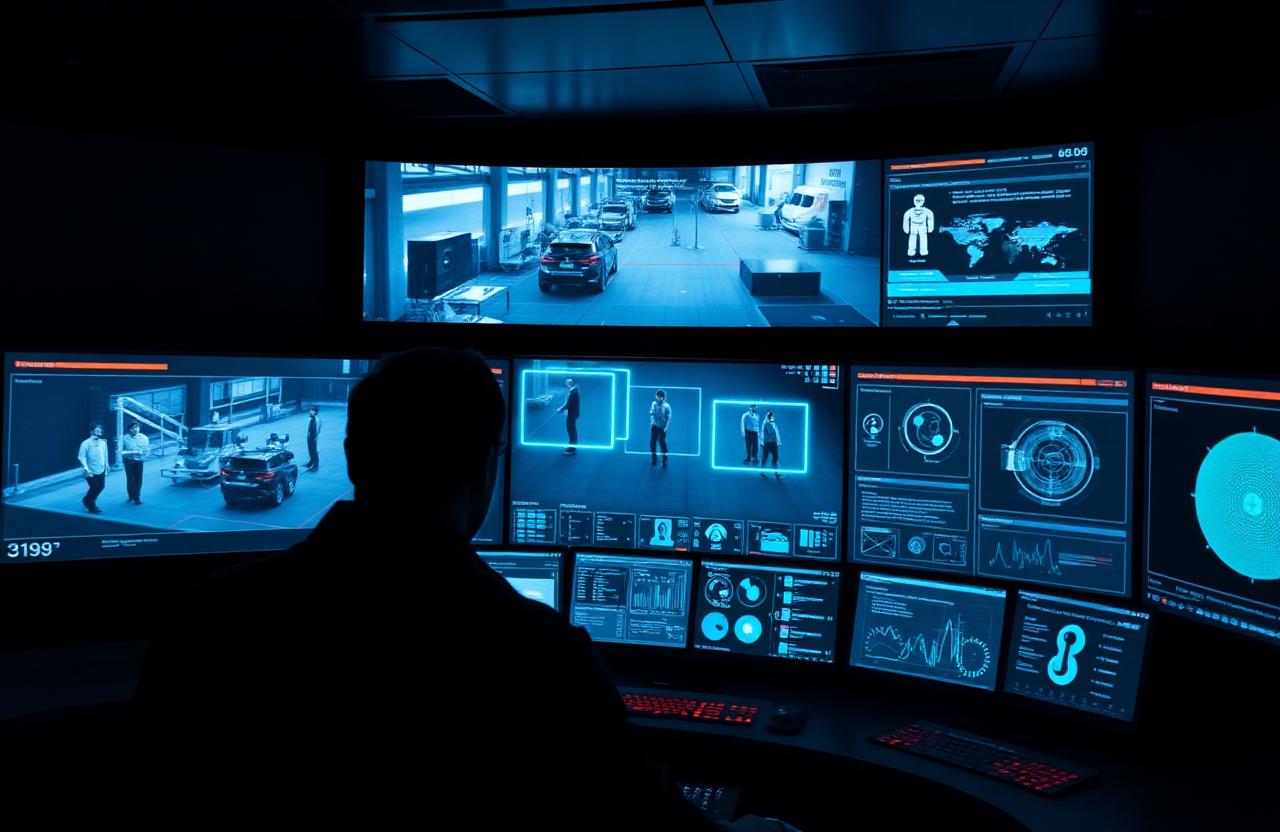

Operations control room with monitors showing AI bounding boxes tracking people and equipment.
Step 02 · Analyze

Environment Analyzed

Multi-modal AI fuses every signal to isolate verified events from background noise.

View more+

Real-Time Data Capture & Analysis

I continuously collect, process, and analyze data from all sensors, immediately identifying subtle patterns, anomalies, and critical events.

Security supervisor receiving a real-time alert notification on a smartphone.
Step 03 · Alert

Notifications Sent

Verified events route to the operator, supervisor, or system that can act on them.

View more+

Proactive Alerts & Online Control Center

Upon analyzing sensor data, I immediately relay actionable intelligence to your team. This is done through a secure, web-based control center for comprehensive oversight, and reinforced with immediate SMS alerts directly to team members, ensuring proactive decision-making and issue prevention, regardless of their location.

End-to-End Synaptic Flow

PROCESS_PIPELINE: INGEST > SYNTHESIZE > ROUTE

CORE_STATUS: ONLINEGLOBAL_LATENCY: < 12MS
01 // SENSOR INGESTION
OPTICAL_ARRAY
742 streams active
4K / 60fps edge buffer
THERMAL_NODE
128 arrays active
Sub-degree variance detect
ACOUSTIC_MIC
415 mics active
92kHz threshold sampling
ACCESS_CTRL
1,418 doors mapped
OSDP / Wiegand bridged
ENV_IOT
470 sensors polling
MQTT / REST / BACnet
02 // MULTI-MODAL SYNTHESIS

Neural Synthesizer

Divergent data vectors are overlaid and classified in a single tensor pass. The engine determines causality, isolating verified threats from background facility noise — no operator triage required.

CLASSIFICATION_TIME11.4ms
SENSORS_PER_NODE1,847+
FALSE_POSITIVES0.002%
OPS_PER_SEC4.2M
TENSOR_CORE_01
04:32:11 UTC
[ANOMALY_LOCKED · 0.984]
03 // VERIFIED ROUTING
OPERATOR_UI

Real-time geospatial mapping of verified anomalies on facility floorplans.

MOBILE_ENCLAVE

Encrypted push alerts with pre-cached multi-modal evidence clips.

SIEM_WEBHOOK

Verified events injected into Splunk, Sentinel, or any REST endpoint.

BMS_BRIDGE

Automatic HVAC, lighting, and access-control triggers via BACnet.

RADIO_DISPATCH

Voice + text dispatch to security teams over existing LMR networks.

// SYSTEM DIAGRAMS

Three views of the same engine.

The pipeline. The fusion logic. The deployment topology. Every AleraVision install runs the same shape — sized to the site.

DIAGRAM 01

The Pipeline

Sensor in. Verified event out. The path every signal travels.

01 · INGEST02 · FUSE03 · ROUTEOPTICALACOUSTICTHERMALACCESSENV / IOTTensor CoreFUSION · < 12MSverifiedOPERATOR UIMOBILESIEM / APIBMS / ACCESSDISPATCH

DIAGRAM 02

Multi-Modal Fusion

Four raw streams converge in a 250 ms correlation window. One verified event leaves.

RAW STREAMSCORRELATION WINDOW · 250 MSVERIFIED EVENTOPTICALACOUSTICTHERMALENV / IoTClassifycausalityEVENT_LOCKEDconfidence 0.984latency 11.4 msFOUR SIGNALS · ONE DECISION · ZERO OPERATOR TRIAGE

DIAGRAM 03

Deployment Topology

Edge gateway, tensor core, command plane. On-prem, hybrid, or air-gapped — same architecture.

01 · EDGEEdge Gateway
Drop-in 1U appliance. Ingests RTSP, ONVIF, MQTT, OSDP, BACnet.
ONLINE
02 · CORETensor Core
Local fusion, classification, correlation. Sub-12 ms. WAN-optional.
ONLINE
03 · COMMANDCommand Plane
Verified events, evidence, audit. Web + mobile + SSO + APIs.
ONLINE
ON-PREM · HYBRID · AIR-GAPPED

Reference Architecture

Edge to enterprise. On-prem, hybrid, or air-gapped.

Deploy how your environment demands — AleraVision never forces a cloud dependency, and never asks you to replace working hardware.

LAYER 01

Edge Gateway

Drop-in appliance ingests RTSP, ONVIF, MQTT, OSDP, BACnet, and proprietary streams. No re-cabling, no camera swaps.

  • 1U / fanless options
  • Up to 1,847 sensors
  • TPM 2.0 + secure boot
LAYER 02

Tensor Core

Multi-modal AI fusion runs locally. Classification, correlation, and verification at sub-12ms — even when the WAN is down.

  • GPU or NPU optimized
  • On-prem or hybrid
  • Air-gapped capable
LAYER 03

Command Plane

Single pane of glass for verified events, evidence retrieval, and audit logs. Open APIs into your existing stack.

  • Web + mobile
  • SAML / SCIM SSO
  • SOC 2 + HIPAA aligned

Integrations

Plug into your existing infrastructure.

Zero rip-and-replace required. AleraVision ingests standard streams and emits structured events directly into your security, building, and operations stack.

GENETEC
MILESTONE_XPROTECT
AVIGILON
SPLUNK
MS_SENTINEL
DATADOG
HONEYWELL_BMS
JOHNSON_CTRL
SIEMENS_DESIGO
CISCO_MERAKI
WEBHOOKS
REST_API
